The pathrider 140xl is bristling with high performance features like full suspension and a hydraulic sealed brake system.  The pathrider 140xl is a powerful blend of power and precision. The pathrider 140xl is equipped with a sleek aggressive style and a wealth of standard luxury touches including a wrap around easy drive tiller and led lighting making it the ultimate outdoor scooter.

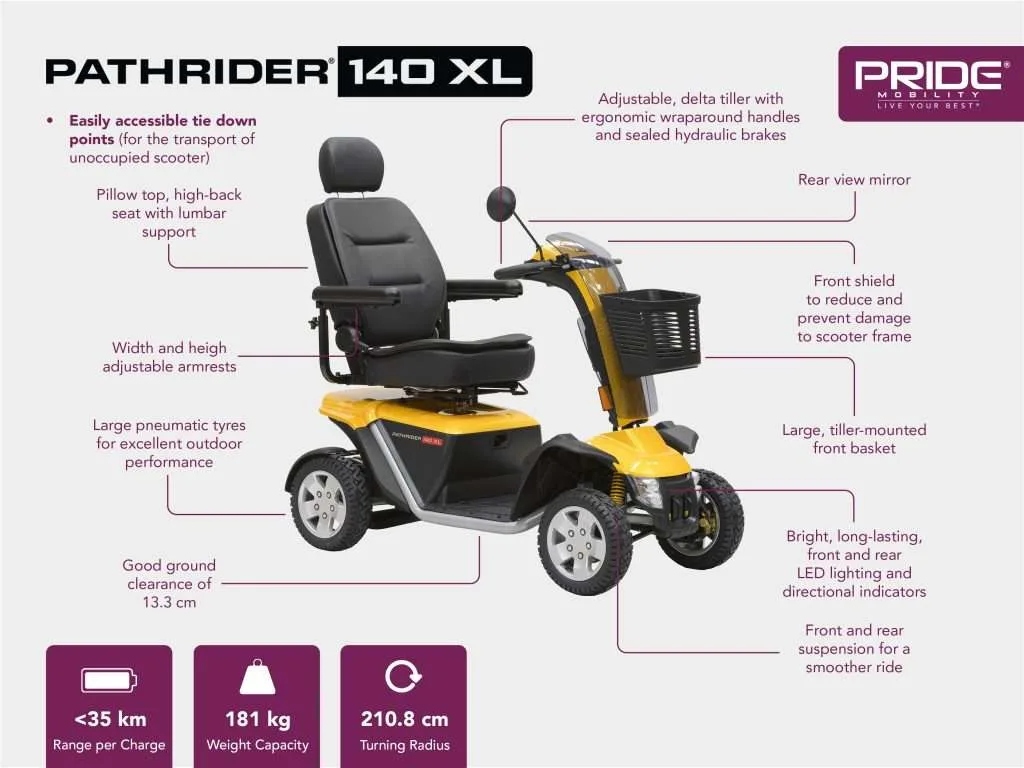

FEATURES:

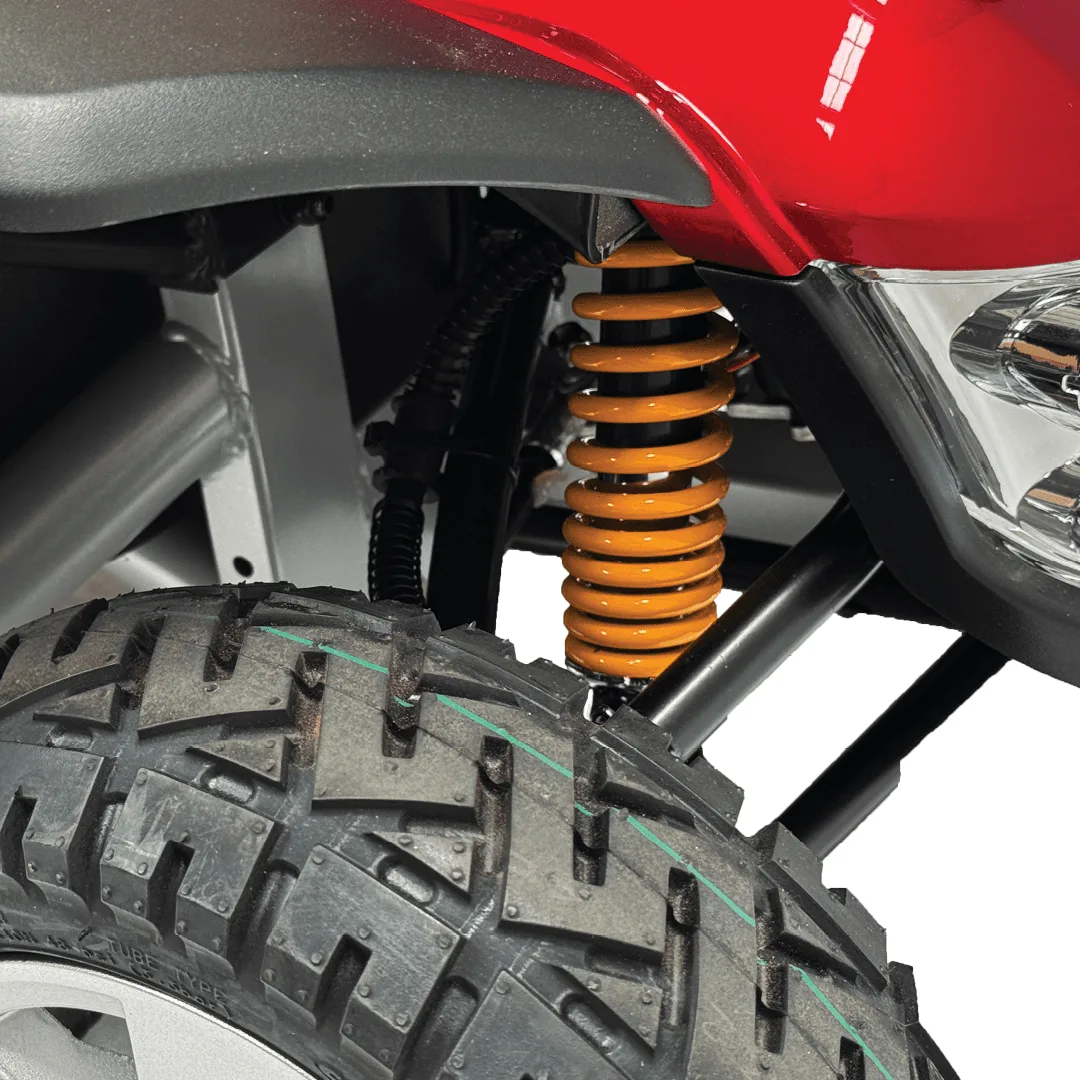

• Full suspension for optimum handling
• Sealed hydraulic brakes
• Large 33cm (13″) pneumatic tyres for excellent outdoor performance
• Full lighting package including directional signals and headlight

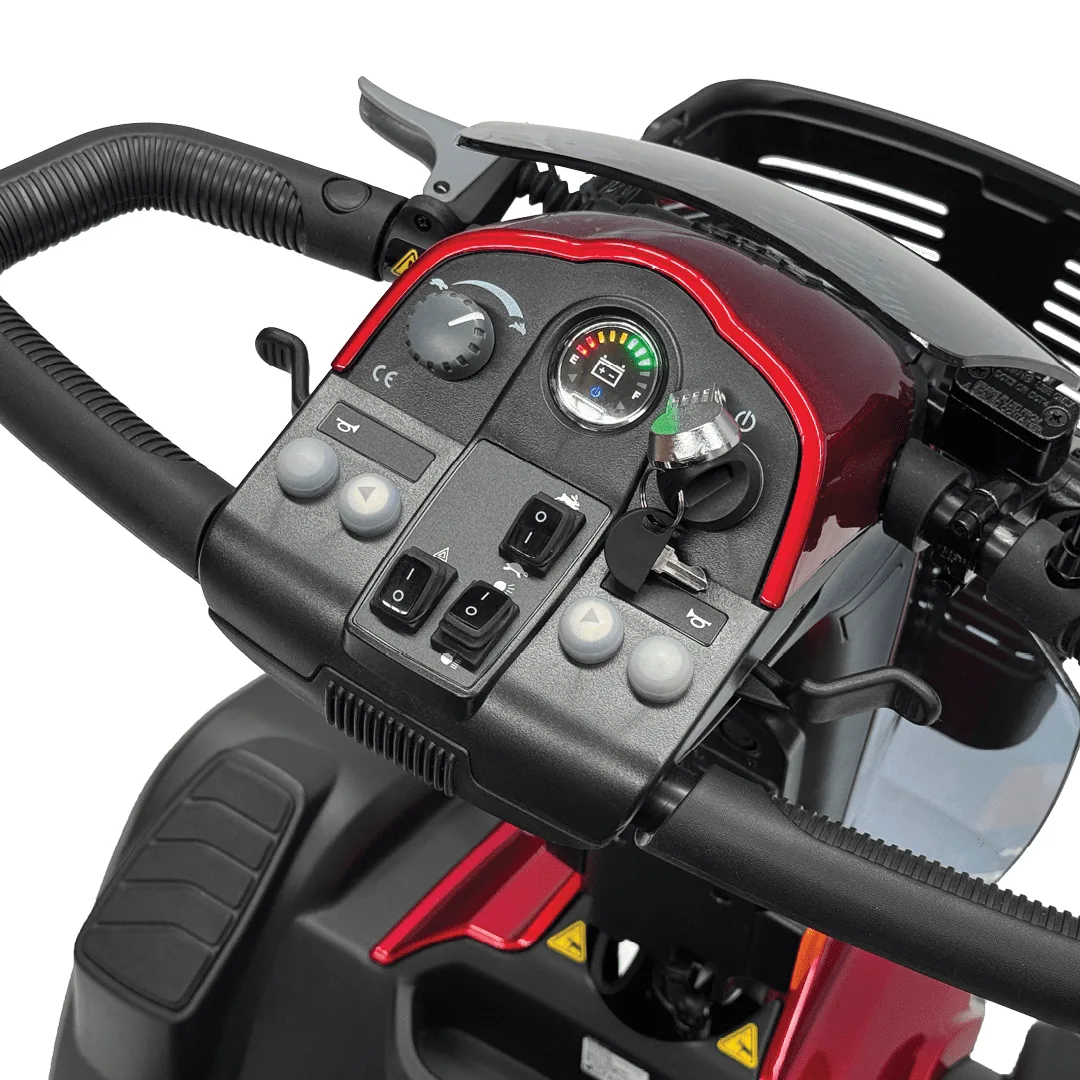

• Easy drive tiller with wrap around handles
• Easily accessible tie down points (for transport of unoccupied scooter)
• Rear view mirror standard
• Front shield standard
• Pillow top seat
• Provided with a safety flag and rear bag

SPECIFICATIONS:

Weight capacity – 181kg

Max speed – 15km/h

Ground clearance – 13.33cm (5.25″

Overall length – 142.8cm

Overall width – 69.2cm

Seat to floor height – 72.39 – 68.58cm

Front & rear tyres – 4″ x 13″

Suspension – front & rear

Range per charge – up to 35km with 75AH batteries

Brakes – regenerative and electromechanical

Motor output – rear-wheel drive, sealed transaxle 24-volt DC motor

Battery requirements – (2) 12-volt, deep cycle,

70 AH

weight: 25kg each

Battery charger – Off-board, 8amp
